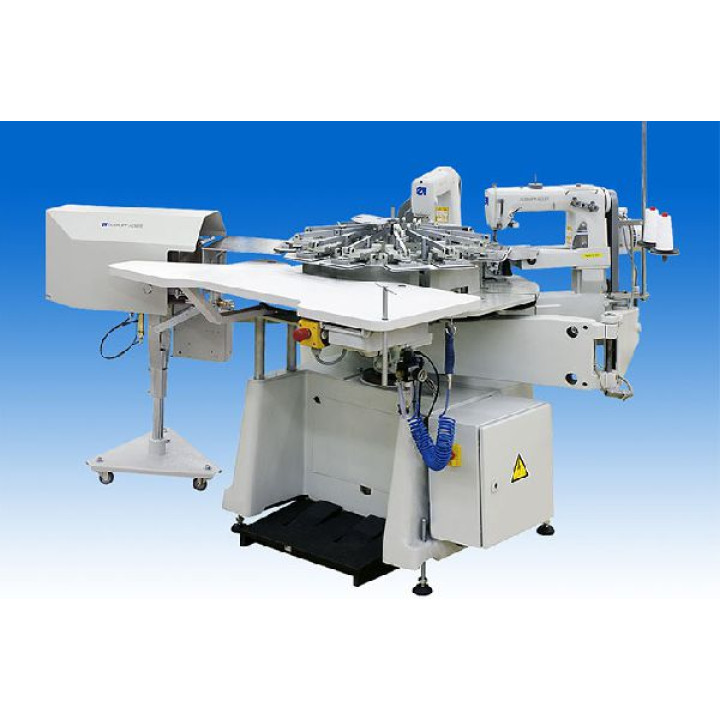

DURKOPP-ADLER 971-01 E2 machine for grinding the cuffs of a shirt
  • Free shipping
  • DURKOPP-ADLER 971-01 E2 machine for grinding the cuffs of a shirt

DURKOPP-ADLER 971-01 E2 machine for grinding the cuffs of a shirt

In Stock
Rating:
Give feedback
In Stock 4758128
4 758 128 грн
Found_cheaper?
  • Sold item: 14
  • Already added to wishlist: 7
  • Brand: Durkopp Adler
  • Product Code: 971-01
Save as PDF

Rotary sewing machine (sewing machine double chain stitch) for grinding with subsequent trimming of cuffs of shirts



Maximum sewing speed – 2800 rpm

The maximum stitch length is 2 mm

Cuff width – 140 mm

Length cuffs – 220-350 mm

Needle – 265 No. 70-100

Stitched material – light and medium

Compressed air pressure – 5 bar

Power – 1 kW

Voltage – 220 V

Production capacity is around 5000 cuffs standard size for 480 min.


The sewing unit consists of 4 stations:

Station 1 – the presentation of the material:

The operator puts the finished cuff in special clips. Clips open and close automatically. Intermediate lifting clamps for adjustment of the cuffs is possible with the help of the pedal.

Station 2 – grinding the cuffs:

Move the sewing head is controlled by the Cam for accurate sewing along the contour of the frame.


Station 3 – trimming the seam allowances:

The movement of the device for trimming excess tissue is also controlled by the Cam. In addition, there is thread trimming at the beginning and end of the seam.

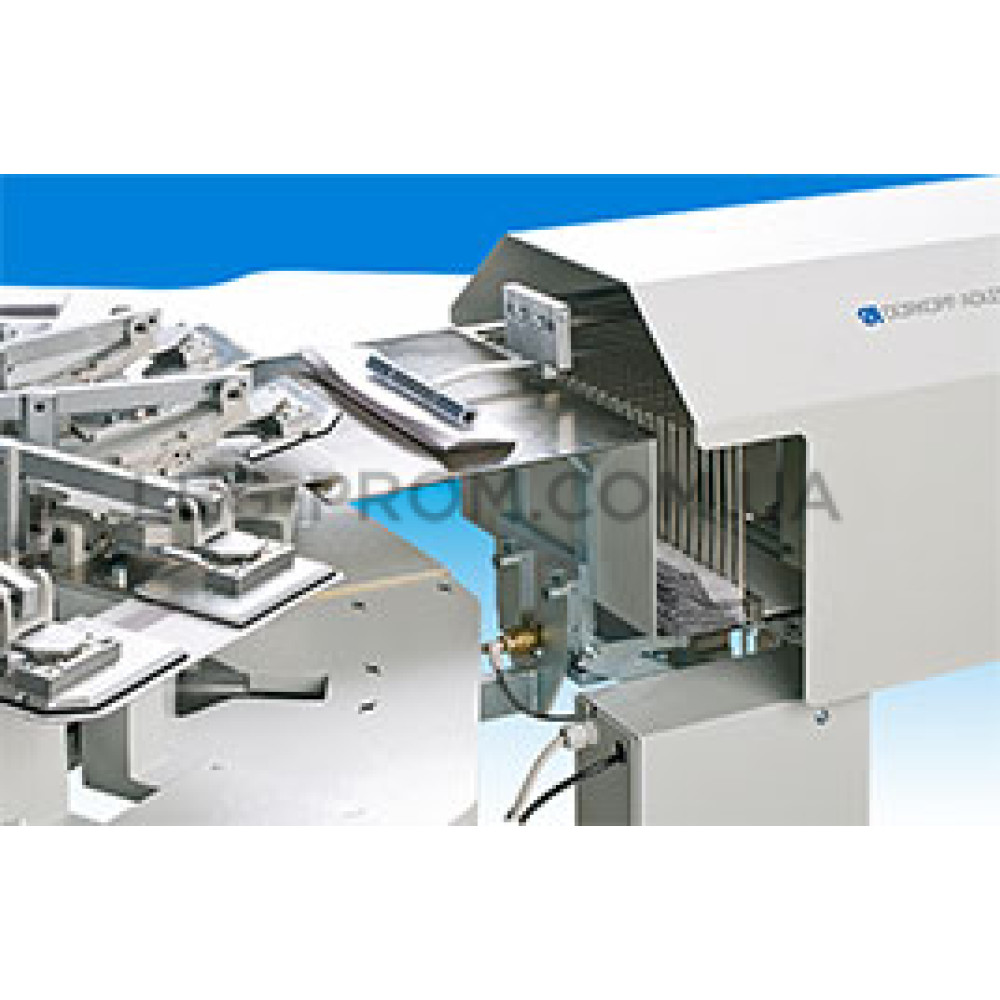

Station 4 – stacking cuffs:

After the operation the clamp opens automatically, special sleeve stacker pulls the finished cuffs out of the clip.

Package contents:

- 0971 990660 - Rotating sewing machine (sewing machine double chain stitch) for grinding with subsequent trimming of cuffs of shirts

- 0971 E00002 - Sewing machine attachments, cutting edges 4.5 mm

- 0971 457924 Kit for quick change of templates

- 0971 458124 Template for trimming the corners of the cuffs

- 0971 427604 - Stacker small parts

- 0550 447529 - Suction device

- В2400739.50 - Blower

- 0797 003031 – Pneumatic connection package



(* The machine can be equipped with various sewing equipment and accessories. The types of models You can check with our specialists.)
Specifications
The brand
Durcopp-Adler
Sewing field, mm
220x350
