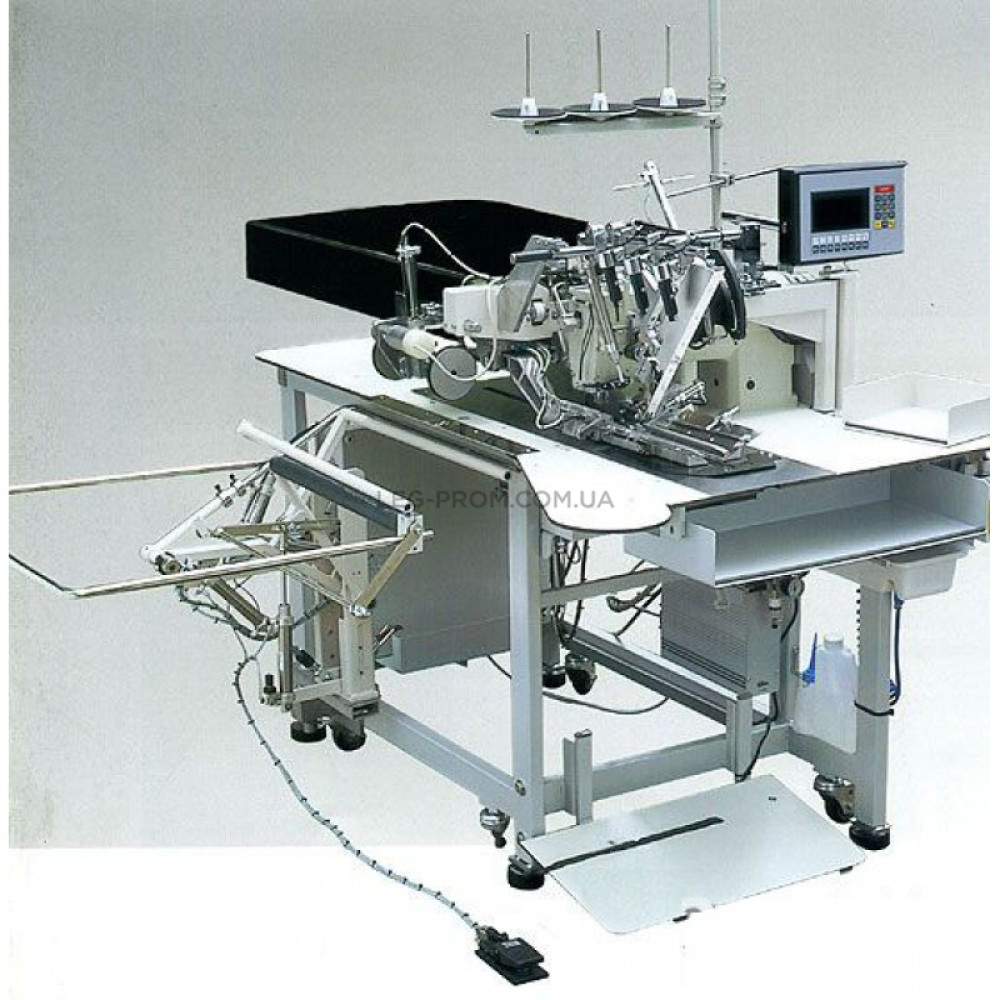

Typical BASS3200 pocket machine
Out Of Stock
Presented to your attention industrial sewing machine
A rolling machine for the Assembly of pocket on products suiting the group.
The machine can handle all types of pockets and oblique, with valve or without valve.
Easily inserted zipper.
High working speed.
The trimmers have their own drive;
The system will move the clip and the corner knives (3 pairs) are fully automatic and are driven by stepper motors.
The Central blade has a separate drive motor
Main features:
- Dimensions in mm 1650х800х1300
- Performance 1400-1600 machined slits for pockets
- Dimensions of table mm 850х1150
- Speed 3000 rpm
- Weight kg 200
- Stitch length mm 0,5-3,0
- The pressure of the compressed air 20NL/6Bar
- Needle system 2134-85
- Voltage 220V, 50/60 Hz
- The thickness of the needle 90-100
- Power 0.7 kW
- The distance between the needles mm 8-30
To buy Typical BASS3200 add product to cart.
Specifications
The distance between the needles, mm
from 8 to 30
Pocket type
straight
The brand
Typical
