Automatic machine for stuffing fluff Yozo YZ-268-2

Automatic machine for packing down Equipment YZ-689-2

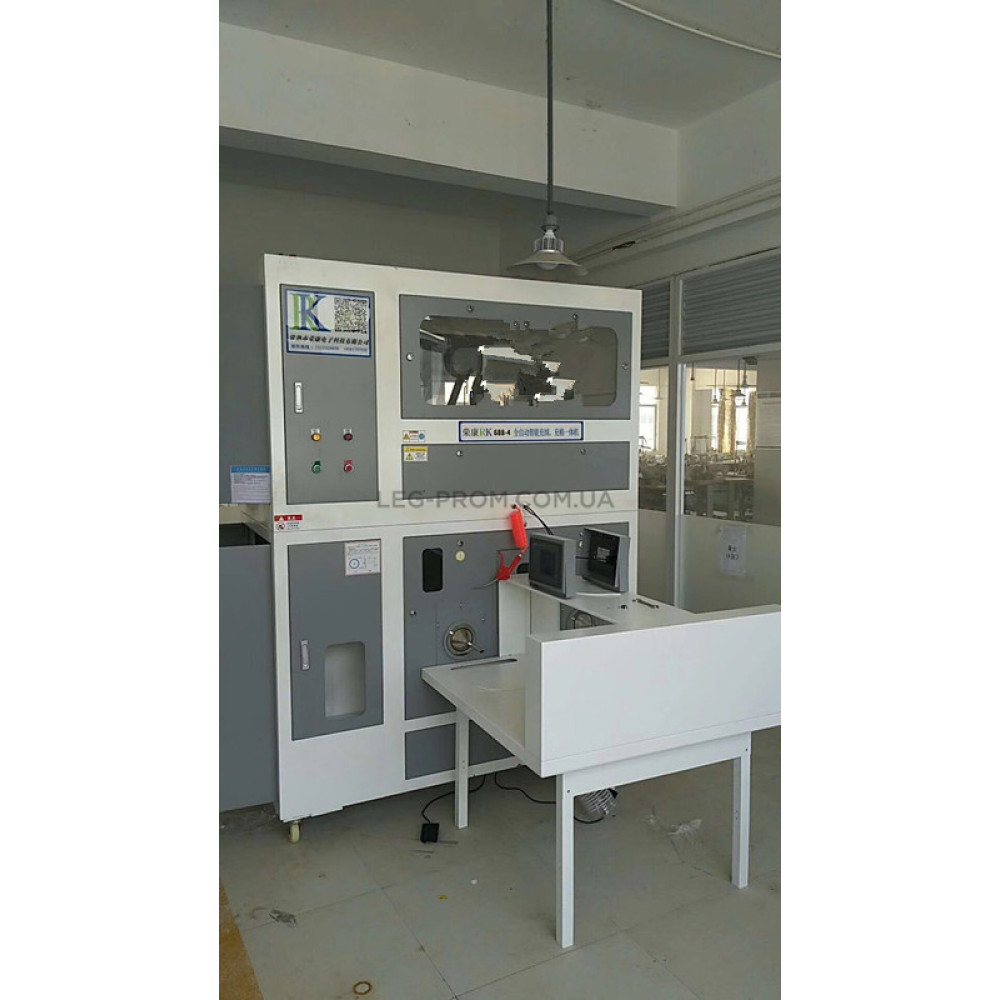

Yozo YZ-689-2 generation compact dual port phanariotes machine. Automatic machine is designed for filling down and feather YZ-689-2 high accuracy of 0.05 g and at high speed. Phonemyphone machine effectively improve work efficiency, reduce labor intensity and improve working conditions.

• The work machine based on the high air pressure that does not damage the Pooh, can effectively maintain the original softness and elasticity of feathers.

• Triple weighting system works in a circular pattern, which ensures a high work speed.
• High precision and accuracy of weighing vary depending on production requirements.
• Electronics and high-precision electronic scale, ensure any weight requirements.

Features phonepackage equipment YozoYZ-689-2

The voltage of -380 volts

Power - 1.5 kW

Tank capacity 0,6 m3

Filler - Fluff 70% -90%

The storage capacity of a down - 10 kg.

The error of weighing is ≤0.05 g

Weight range - 0.1-3g / 0.1-7g / 1-50g

Fill rate - 1 to 8 grams per second.

Minimum air supply - 0.8m3 / min

Minimum pressure 0.58 Mpa (4.8 bar)

Number of working ports - 2

The number of weighing containers - 6

Nozzle diameter mm 16-19mm

Filling accuracy - 0.01 g

Acrylic box

Special acrylic box, eliminating the electrostatic effect, high precision weighing.

An important factor in a clean area, air purification and the recommended location of the equipment.

• Cleanliness in the room is achieved with the help of extracts
• The cleanliness of the room is the health of your staff
• The cleanliness of the room one of the factors of increase of efficiency

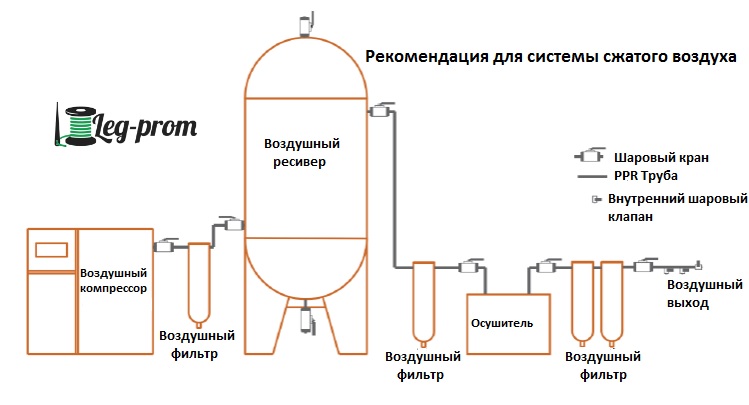

Important!!! Requirements for air and compressor

Sleeve length or pressure pipes from the equipment to the compressor to 20 meters.

Pipe diameter from 1 inch (by increasing the length of the pipe, the diameter increases)

The screw compressor is applied from 10 atmospheres, 3.5 kW.
