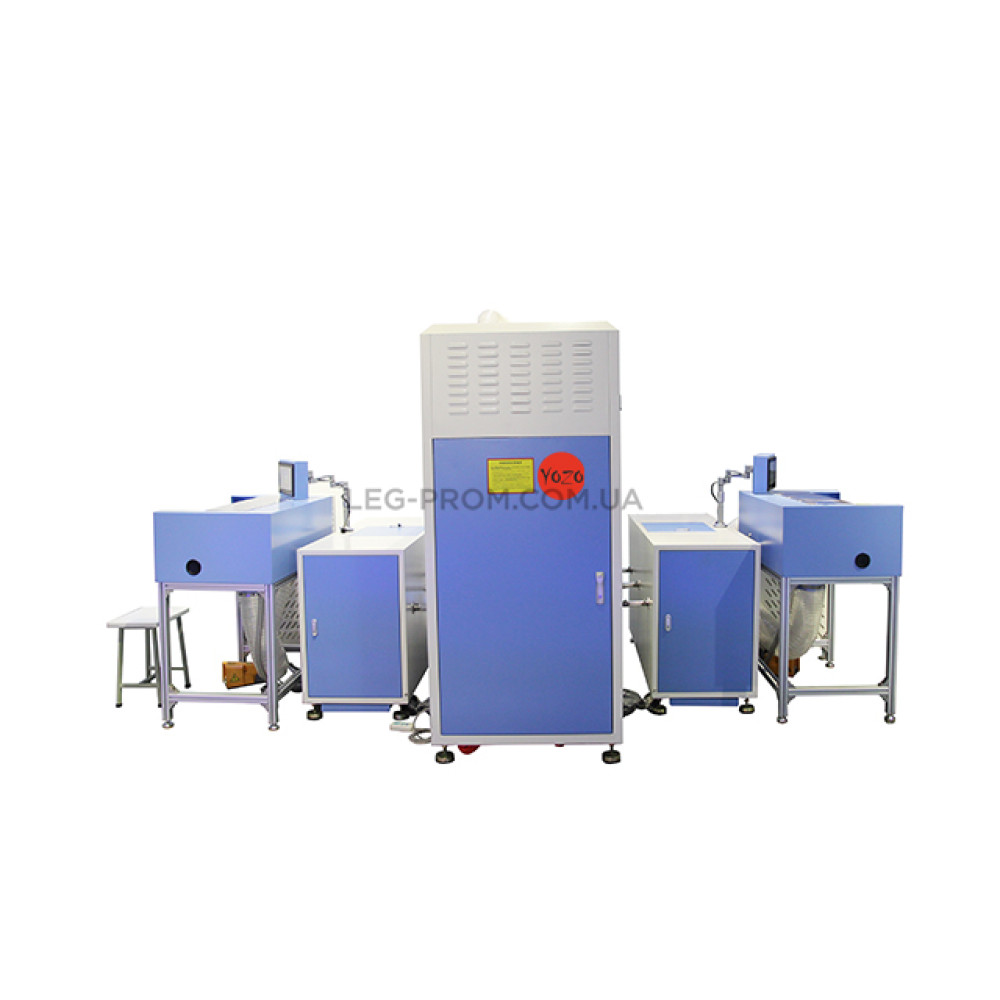

High Accuracy Automatic Down & Feather Filling Machine YZ-2P-6G

High Accuracy Automatic Down & Feather Filling Machine YZ-2P-6G

Yozo YZ-2P-6G dual port phanariotes generation of compact cars. Automatic machine is designed for filling down and feather YZ-2P-6G with high precision 0.01 g and high speed. High Accuracy Automatic Down & Feather Filling Machine effectively improve work efficiency, reduce labor intensity and improve working conditions.

• The work machine based on the high air pressure that does not damage the Pooh, can effectively maintain the original softness and elasticity of feathers.

• Triple weighting system works in a circular pattern, which ensures a high work speed.
• High precision and accuracy of weighing vary depending on production requirements.
• Electronics and high-precision electronic scale, ensure any weight requirements.

 Feather Filling Machine YozoYZ-2P-6G

The voltage is 220 volts

Power - 1.5 kW

Tank capacity 0,6 m3

Filler - Fluff 70% -90%

The storage capacity of down - 10-12 kg.

The error of weighing is ≤0.05 g

Weight range - 0.1-3g / 0.1-7g / 0.1-30g

Fill rate - 1 to 8 grams per second.

Minimum air supply - 0.8m3 / min

Minimum pressure 0.58 Mpa (4.8 bar)

Number of working ports - 2

The number of weighing containers is 6

Nozzle diameter mm 16-19mm

Filling accuracy - 0.01 g

 Selected special aviation plug, easy to install, high resistance to turbulence, reliable and durable, guaranteed stable signal transmission.

Acrylic box

Special acrylic box, eliminating the electrostatic effect, high precision weighing.

Drive shaft with zinc coating

High hardness, wear resistance, durability, anti corrosion.

Operator table

Desk made of aluminum alloy, the supporting legs are adjustable, anti-vibration design.

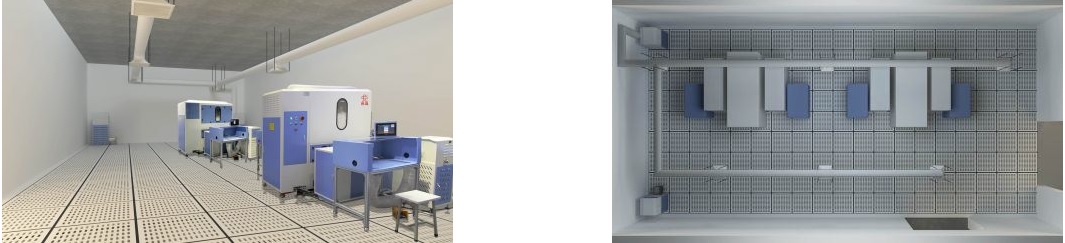

An important factor in a clean area, air purification and the recommended location of the equipment.

• Cleanliness in the room is achieved with the help of extracts
• The cleanliness of the room is the health of your staff
• The cleanliness of the room one of the factors of increase of efficiency

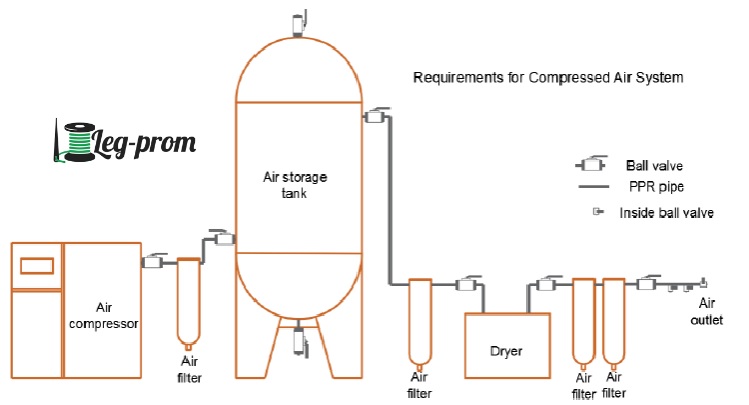

Important!!! Requirements for air and compressor

Sleeve length or pressure pipes from the equipment to the compressor to 20 meters.

Pipe diameter from 1 inch (by increasing the length of the pipe, the diameter increases)

The screw compressor is applied from 10 atmospheres, 3.5 kW.
