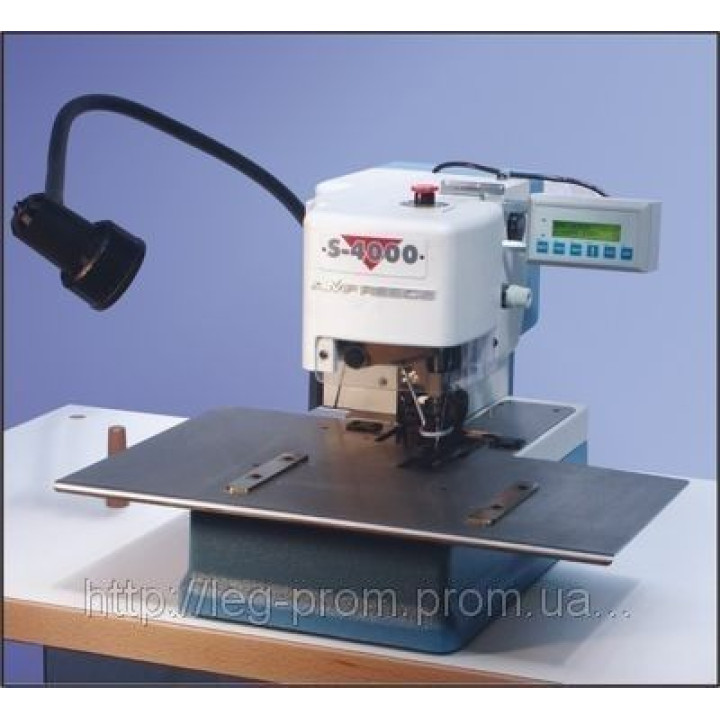

Machine to simulate loops on the splines of the sleeves REECE S-4000 ISBH Indexer

Presented to your attention industrial sewing buttonhole machine

AMF REECE S – 4000 ISBH Indexer - electronic buttonhole machine for imitation of straight stitches on the sleeves of the jacket made at a right angle with indexerror (automatic move from loop to loop).
Main features:

• Electronic control (stepper motors).
• Electronic speed control from 1000 to 3800 min-1.
• 1-thread chain stitch.
• Loop length: 15,8 - 22,0 mm.
• Stitch width: 1,6 - 2,3 mm.
• Frequency stitches: 4 - 12 stitches per 1 cm
• Number of loops: standard 3-4 or up to 16 (optional).
• Distance between loops: 4 to 63 mm (maximum distance between the outermost hinge – 63 mm).
• The maximum distance from the edge of the workpiece before the first loop: 67 mm.
• The possibility of making loops at an angle (tilt): 0-60.
• Working air pressure: 5.5 bar. Air consumption: 14 liters/min.
• Power supply – 230V , 50/60Hz, 1 phase.
• The presence of the display.
