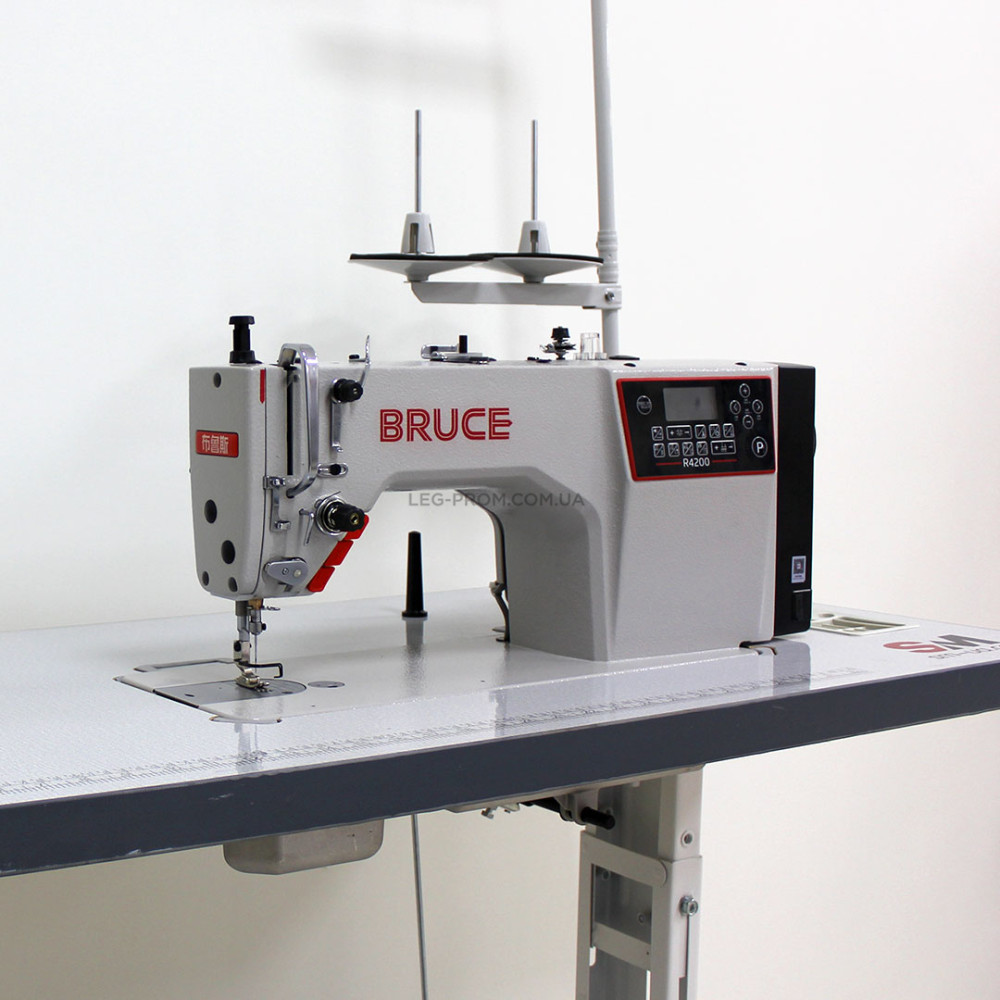

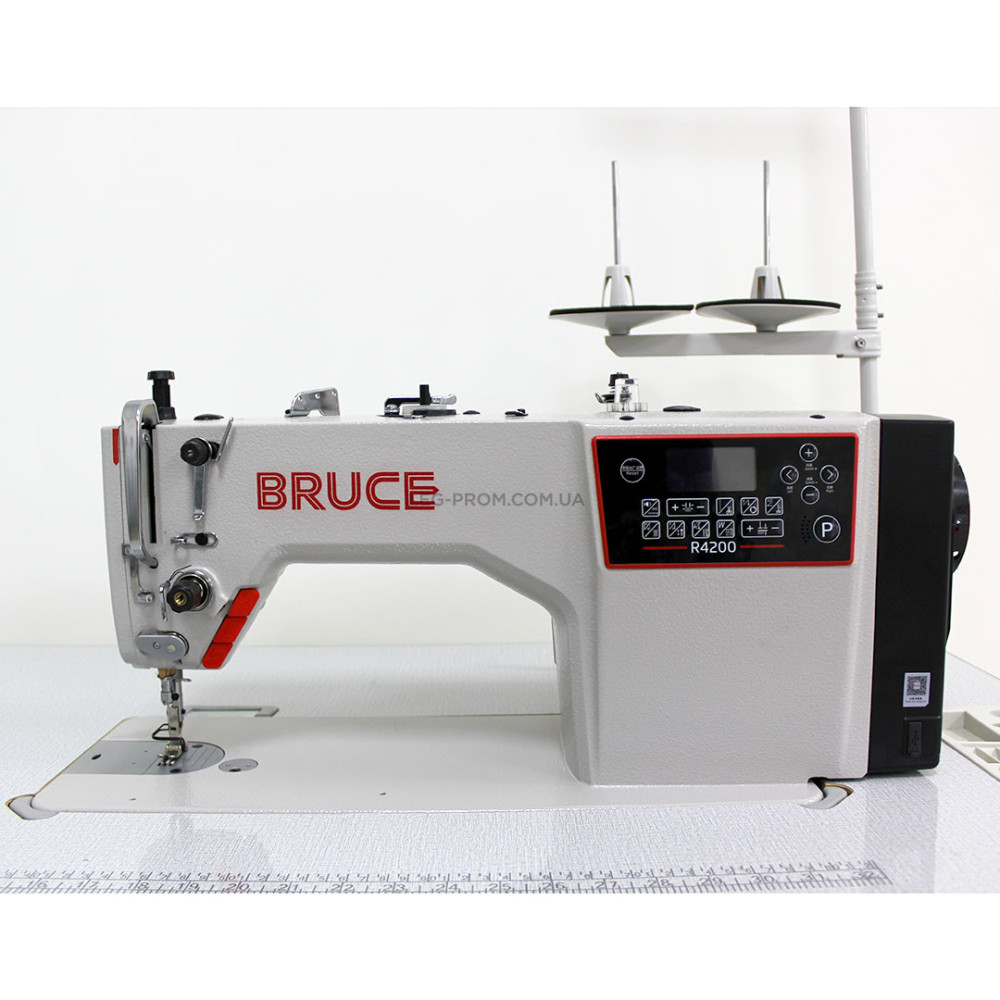

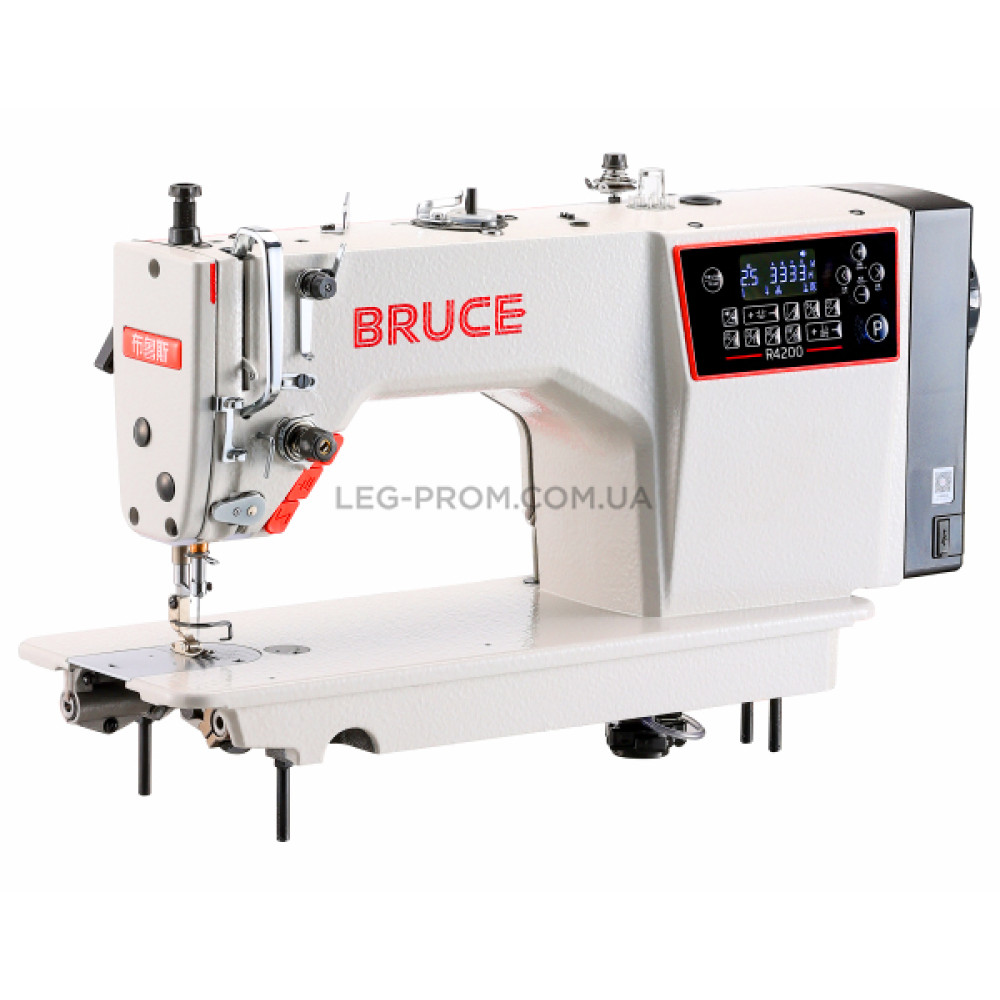

BRUCE R4200-DQ sewing machine with electronic stitch length adjustment and servo foot lifter, for light-medium materials
BRUCE R4200-DQ is an industrial sewing machine with automatic functions for light to medium materials. The BRUCE R4200 is significantly different from all its predecessors due to the updated stitch length adjustment unit and the servo foot lifter with intermediate lift height adjustment. Thanks to these upgrades, the machine began to work almost silently, which significantly increases the comfort of the seamstress.
The R4200 universal lockstitch sewing machine is perfect for both home-based seamstresses due to its very low noise level, and for large productions due to its high performance and innovative functionality, first used in machines of this class. Lockstitch lockstitch machines are used in the manufacture of any garment. The BRUCE R4200-DQ model will find its application for sewing light-medium materials, textiles or knitwear.
BRUCE R4200-DQ main specifications
Machine type: 1-needle 2-thread lockstitch machine
automatic presser foot lifter: ✓;
automatic thread trimming: ✓;
programmable functions: ✓;
Maximum speed: 5000 rpm;
Network: 220V
Electronic Stitch Length Adjustment
The R4200-DQ industrial sewing machine is equipped with a new type of stitch length adjustment mechanism. Instead of the usual mechanical assembly, the machine has a stepper motor with adjustment from the machine's display. This type of adjustment allows you to change the stitch length in 0.1 mm increments. Due to the absence of a mechanical knot, noise has been reduced and smoothness has increased.
Maximum stitch length 5 mm.
Servo presser foot lifter with lift height adjustment
Usually in machines with automatic functions, an electromagnet is used to automatically raise the presser foot. This solution is practical, but the unit is quite noisy in operation and does not have flexible adjustments.

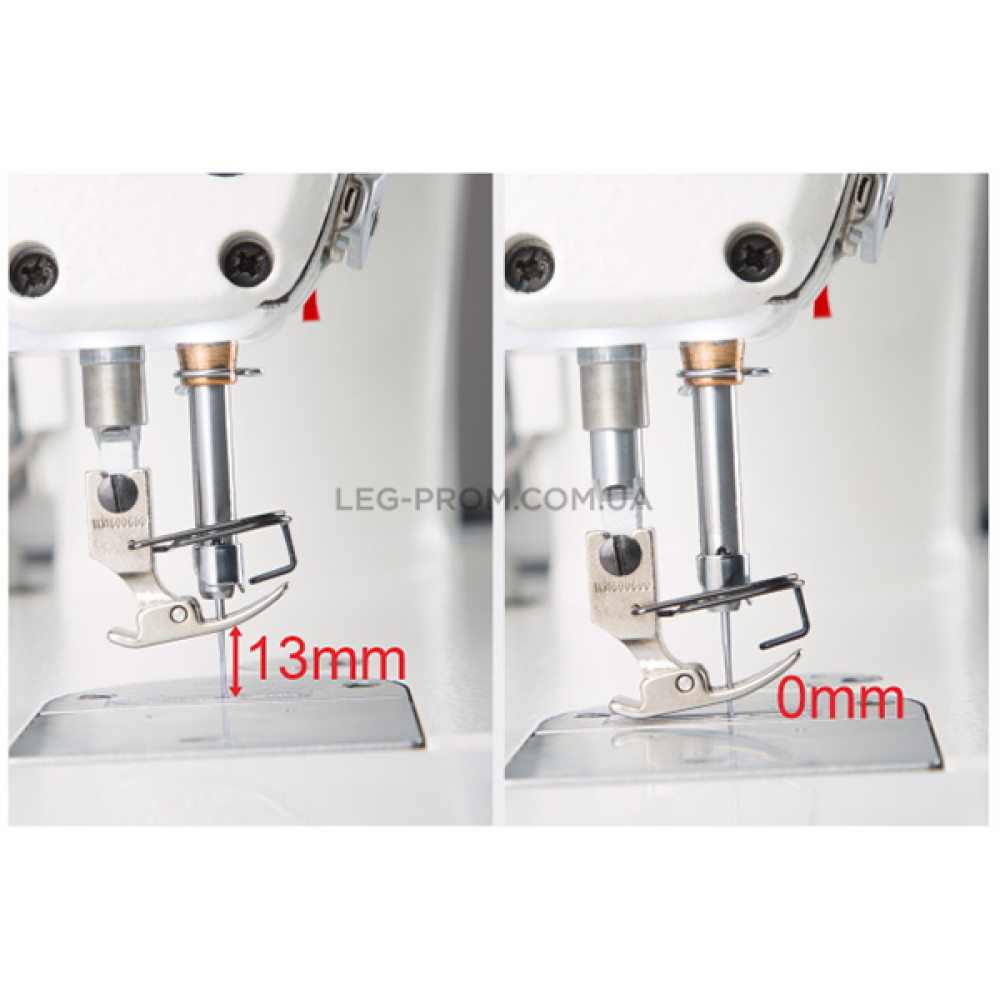

The R4200 sewing machine model was the first in its line to receive for automatic presser foot lifting servomotor. The servo presser foot lifter works almost silently and has the ability to adjust the height of the lift. Also for the convenience of the operator, the control panel has a quick adjustment of the intermediate presser foot lift in the range from 0 to 13 mm, with an adjustment step of 1 mm.
Low Noise

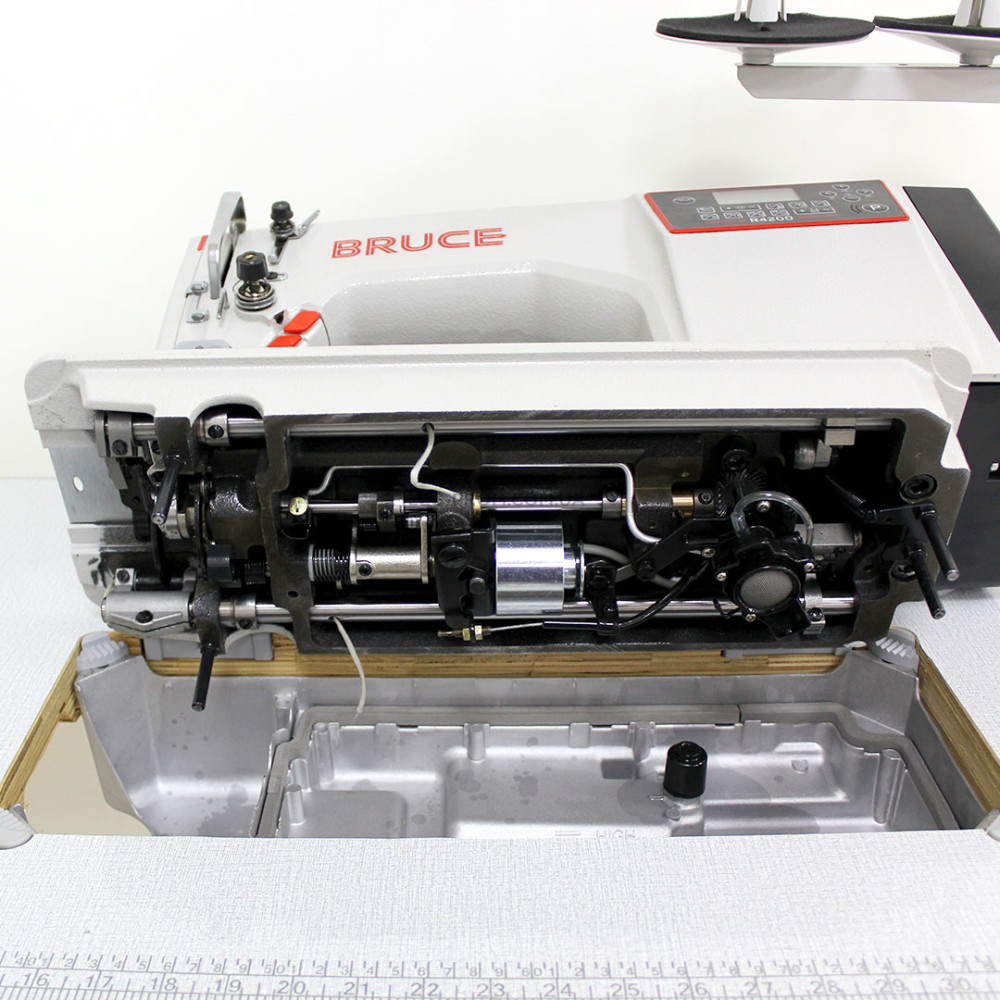

Machine running noise reduced compared to a conventional sewing machine by more than half, and when compared with automatic machines with external electromagnets - then 4 times! This result was achieved by replacing electromagnets with servomotors. Also noteworthy are the mechanical upgrades. Together, this made it possible to bring the comfort of working behind the machine to a higher level.
Decorative Stitch

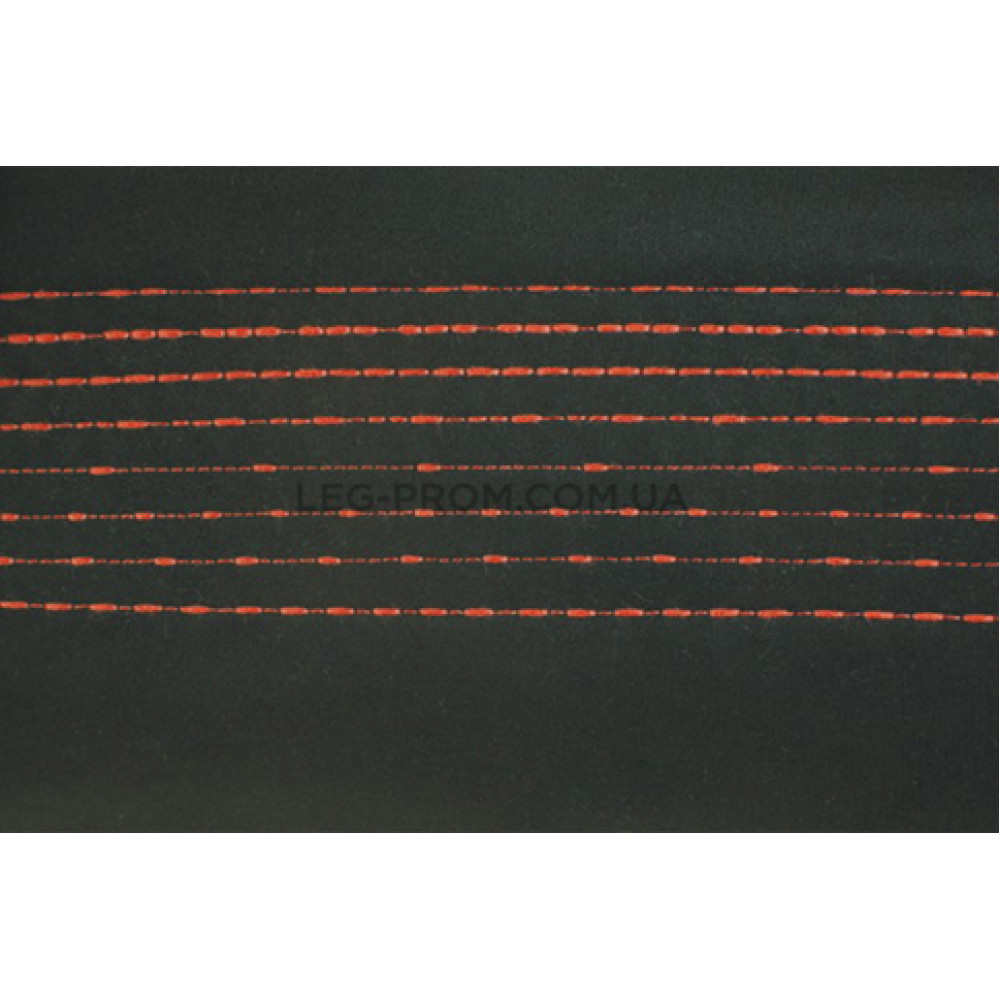

< div class="block-lt"> The BRUCE R4200-DQ has 9 decorative stitch patterns pre-programmed. The operator has the ability to program different types of finishing stitches.Micro stitch before thread end after trimming

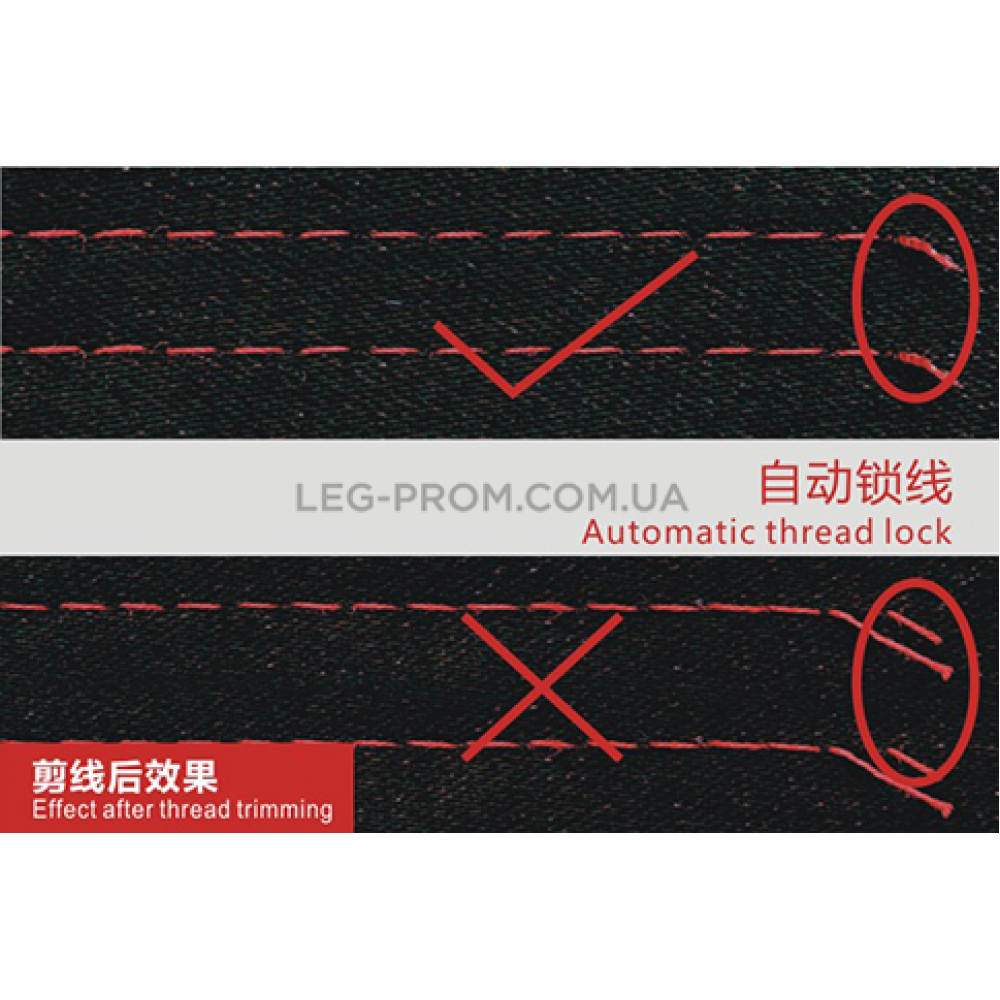

To prevent wasting the last stitch after trimming, the BRUCE R4200 is programmed to sew two stitches with a length of 0.1 mm, regardless of whether the automatic bartack is on or not.
Due to the microstitch, the length of the tails of the thread after trimming remains only 3.5 mm!

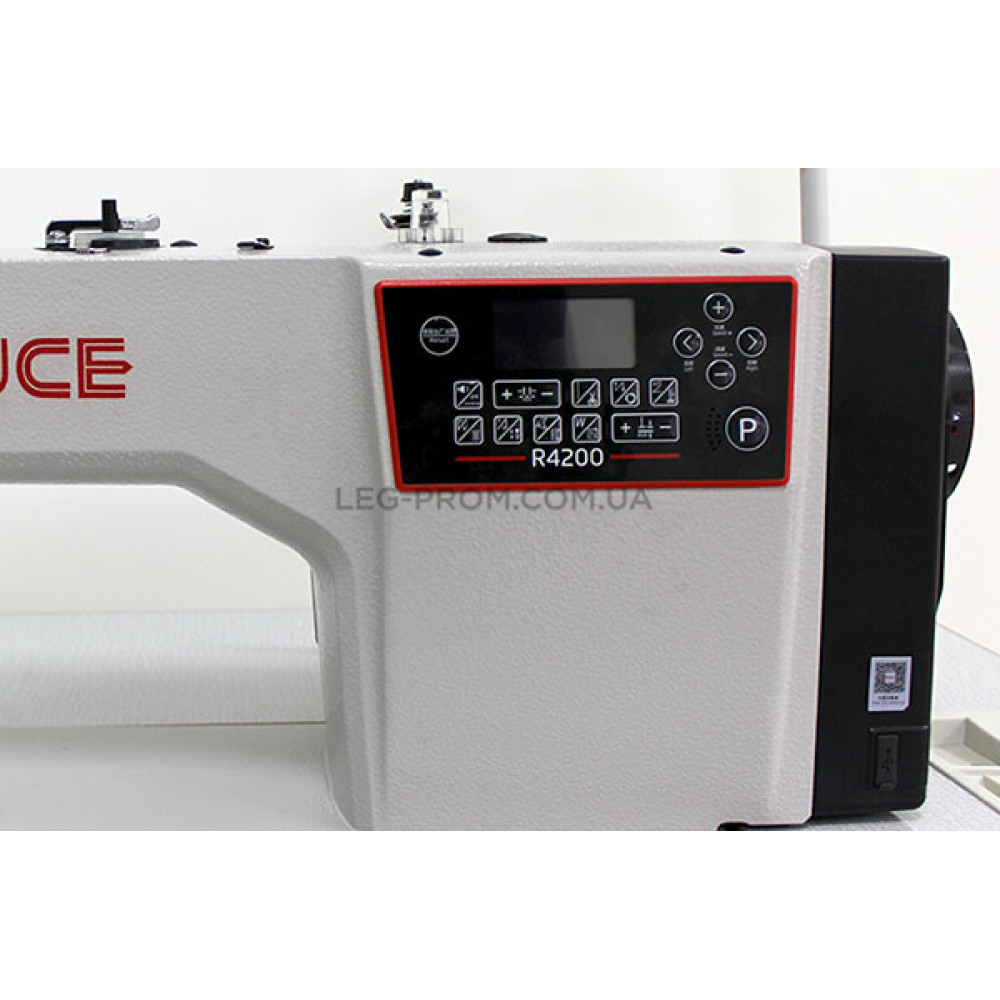

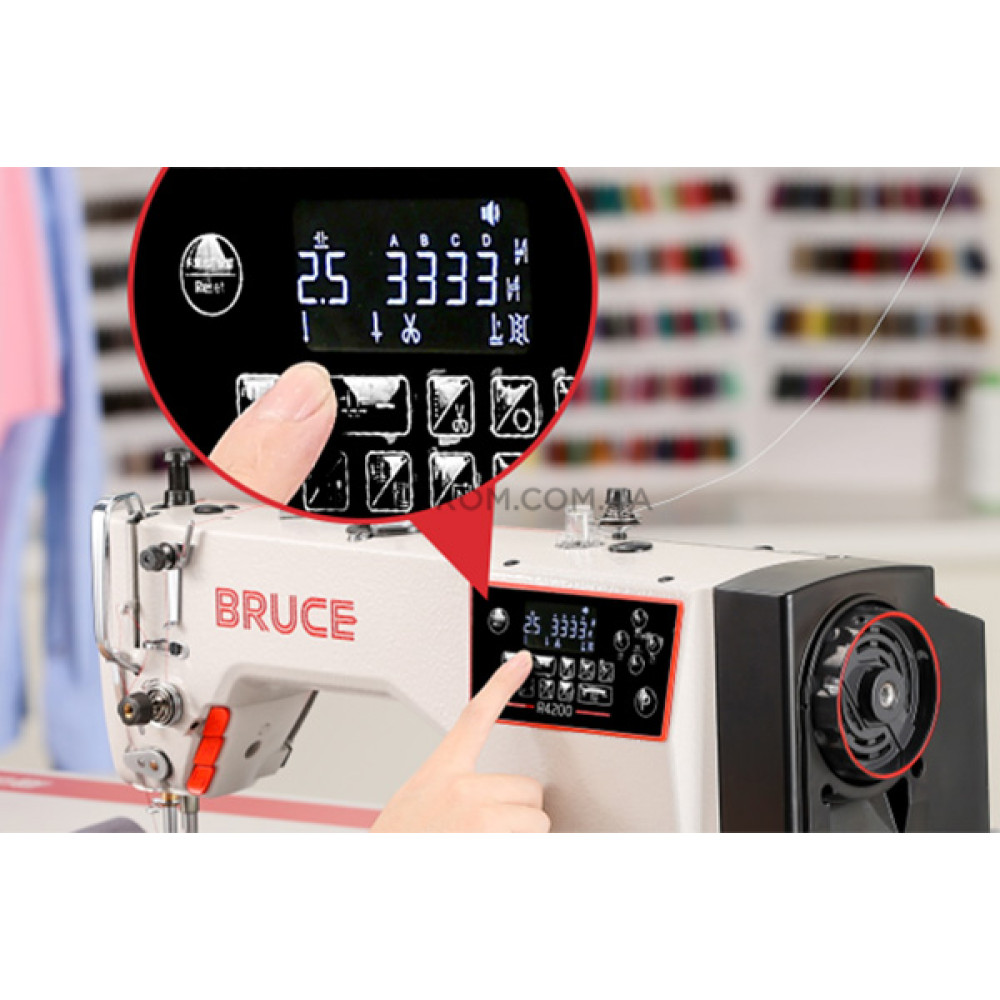

Control Panel
QIXING machine electronic remote control and control box - proven quality and stability.
The R4200 Machine Control Panel has received the following quick features:
Button voice guidance (English and Chinese)
Stitch length adjustment
Sewing programs (free-motion sewing, bartacking, contour sewing, decorative sewing)
Programming automatic bartacks (in at the beginning and end of the seam)
Micro stitch (at the beginning and end of the seam)
Adjusting the intermediate presser foot lift
There is also a USB port on the control unit

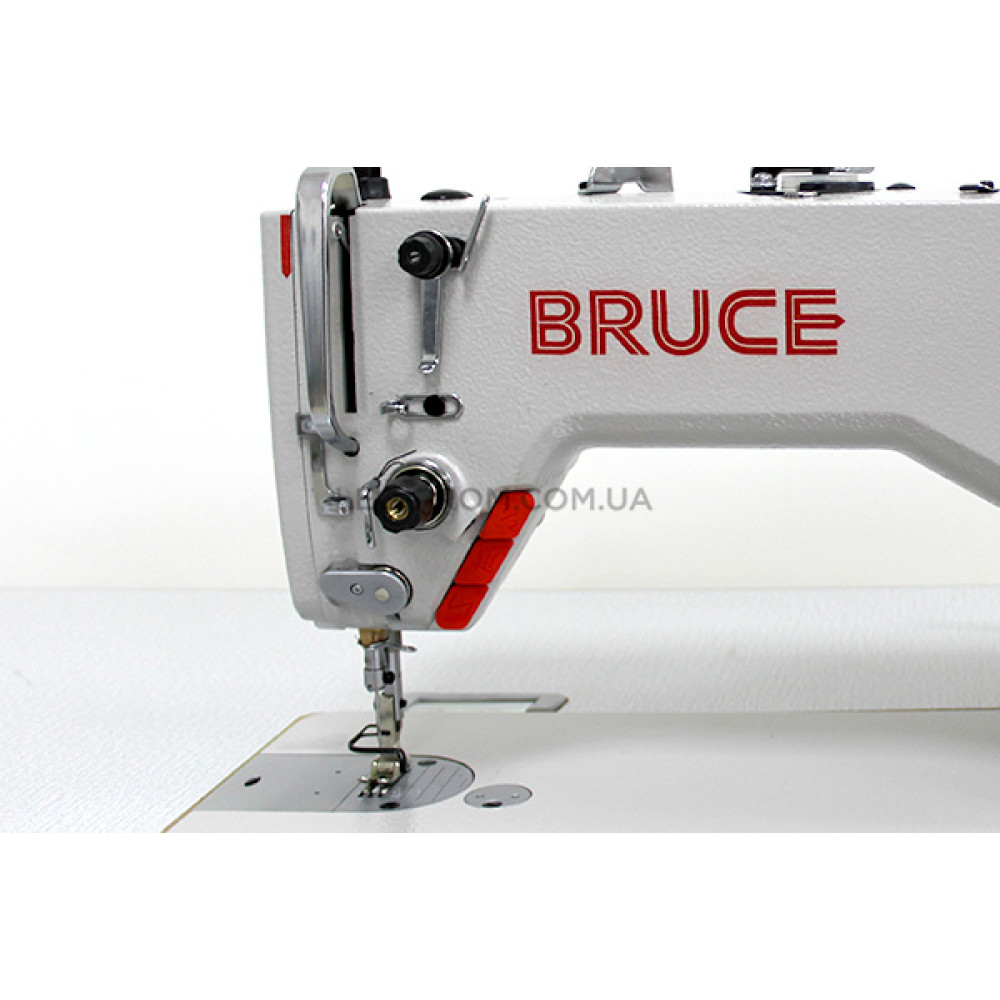

Manual Button Block
The usual new design bartack lever is not on the machine. Therefore, a push-button unit for manual control of the machine is installed in the machine.
Finish stitch button: one press - 1 stitch, if the button is pressed - the sewing machine will sew at minimum speed.
1/2 stitch button: one press makes half of the set stitch length, if the button is pressed - the sewing machine will sew at minimum speed.
Manual backtack button: to perform backtack, you need to hold down the button and start sewing (the button only changes the sewing direction, but does not sew.)
There is an LED on the button unit illumination of the needle zone with three brightness modes.
Included items:

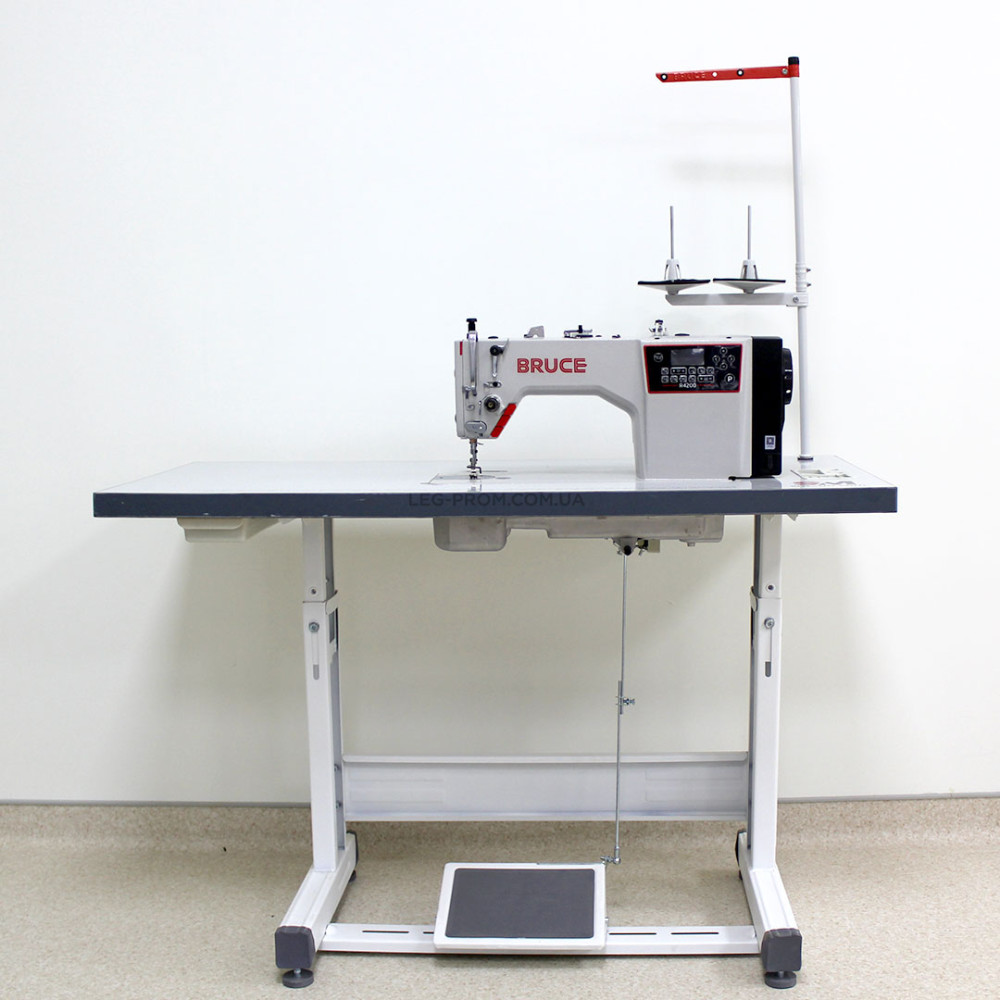

BRUCE R4200-DQ computerized sewing machine:
- sewing machine head with built-in servo motor
- instruction and part list
- standard needles
- standard tool kit
- reel stand
- table and bed
