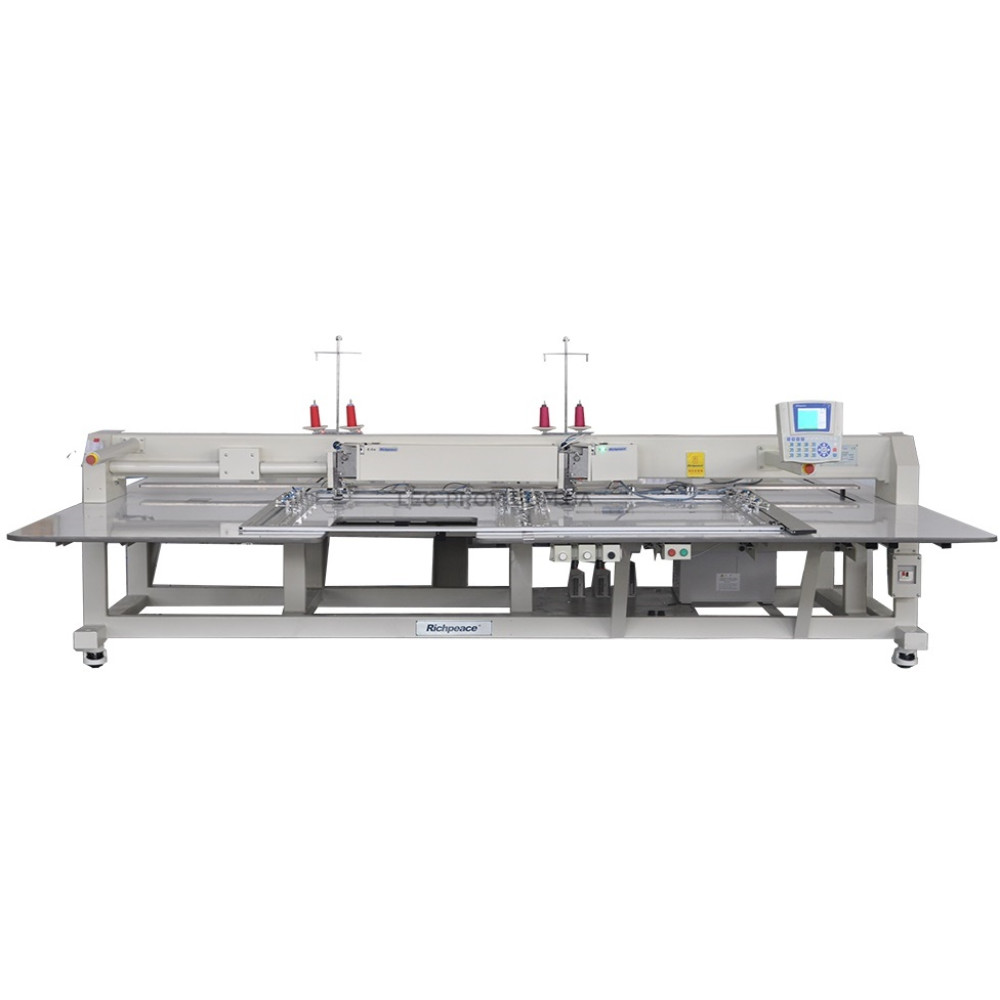

Richpeace RPAS-LM-02-600x900-B-2 Template machine, 2 heads with a field of 600*900 mm

Richpeace RPAS-LM-02-600x900-B-2 Template machine, 2 heads with a field of 600*900 mm

In Stock
Rating:
Give feedback
In Stock 1238892
1 238 892 грн
Found_cheaper?
  • Sold item: 9
  • Already added to wishlist: 14
  • Brand: Richpeace
  • Product Code: RPAS-LM-02-600x900-B-2
Save as PDF

RPAS is a new development from RICHPEACE and is considered the best in the development of technology, template machines for the manufacture of garments.

The machine is versatile and has applicability in various fields like the manufacture of the upper clothes (coats, jackets, down jackets, overalls, jeans, pants, skirts, shirts, etc.), for example for the manufacture of technical and other products, which is the operation for stapling nastraivanie, the stitching (example: creation of furniture, shoes, leather handbags, backpacks, car seats, trim panels, airbags, all kinds of belts, etc.)

A list of sewing operations are quite diverse: storage of small parts(valves, cuffs, collars, belts, etc.); stitching detail at the top (sleeves, backs, nastraivanie pockets, etc.), clips of various configurations and dimensions; decorative westrock (embroidery in 1 color) on the details, for example the back pockets of jeans; wystawianie and stitching detail down jackets, jackets with insulation; wystawianie and stitching detail bags, furniture, all kinds of soft upholstery. For a given number of sewing operations on a single detail or the number of processed details only limit sewing field of the sewing machine.

Provided equipment is completed with number of goals (1, 2, 4 and 6 goals), and the maximum sewing field for each head (dimensions 600х900мм and 800x1200 mm), significantly increases the efficiency of Your production. This equipment greatly facilitates, accelerates and improves the quality because it not only replaces a huge number of qualified staff (seamstresses), template replaces machine lockstitch machine 2-needle machine, bar tacking machine.

Step by step, how does the template machine:
1. First, the programmer writes a program sewing, prescribes all the seams (operations) in special software to ensure (comes with car), where you specify all the characteristics of the weld – location seam detail, stitch length, deceleration, acceleration, tack, etc. the data Format is DST. The program for writing of the designs fairly simple and training does not take a lot of time and effort. The design is loaded into the machine using a flash memory.
2. The second step is to make a template, for example of Plexiglas, on which are cut the holes for the seams on the details of the cut. This template is necessary for positioning and fixing parts in a pattern in which the operator puts the parts. Not stay closed areas (lines) where there will be seams.
3. Pattern laid out and recorded by the parts inserted in the sewing machine and clamped. The operator selects from the control panel a suitable program (for your template) , chooses a starting point and presses the "Start" button. Then the machine will perform all programmed lines and seams without the operator's role.
The operator will need only to correctly lay out the details in the template, select the appropriate program from
the memory of the machine and replace the bobbin, checking the threading is subsequently completed or a cliff.
In the case where it is necessary to perform long seams/lines that intersect, for example wystawianie down jackets or jackets, bags, squares, rhombuses, etc., the operation is performed in 2 steps.

SPECIFICATIONS:
Maximum speed:
- 1-2 head 1500 St/min
4-6 heads 1200 St/min
Max. the lifting height of the needle bar up to 20mm
Types of processed materials – from light to heavy
The size of the needles – #55-#180(in the range of #55-#110 and #120-#180 are different osloboditelen)
Type of the Shuttle is rotating
Used 2 feet Central foot secures the material in the puncture needle, the General presses the surface of the template and the material in the treatment area
