Presented to your attention industrial sewing machine zigzag Ankai

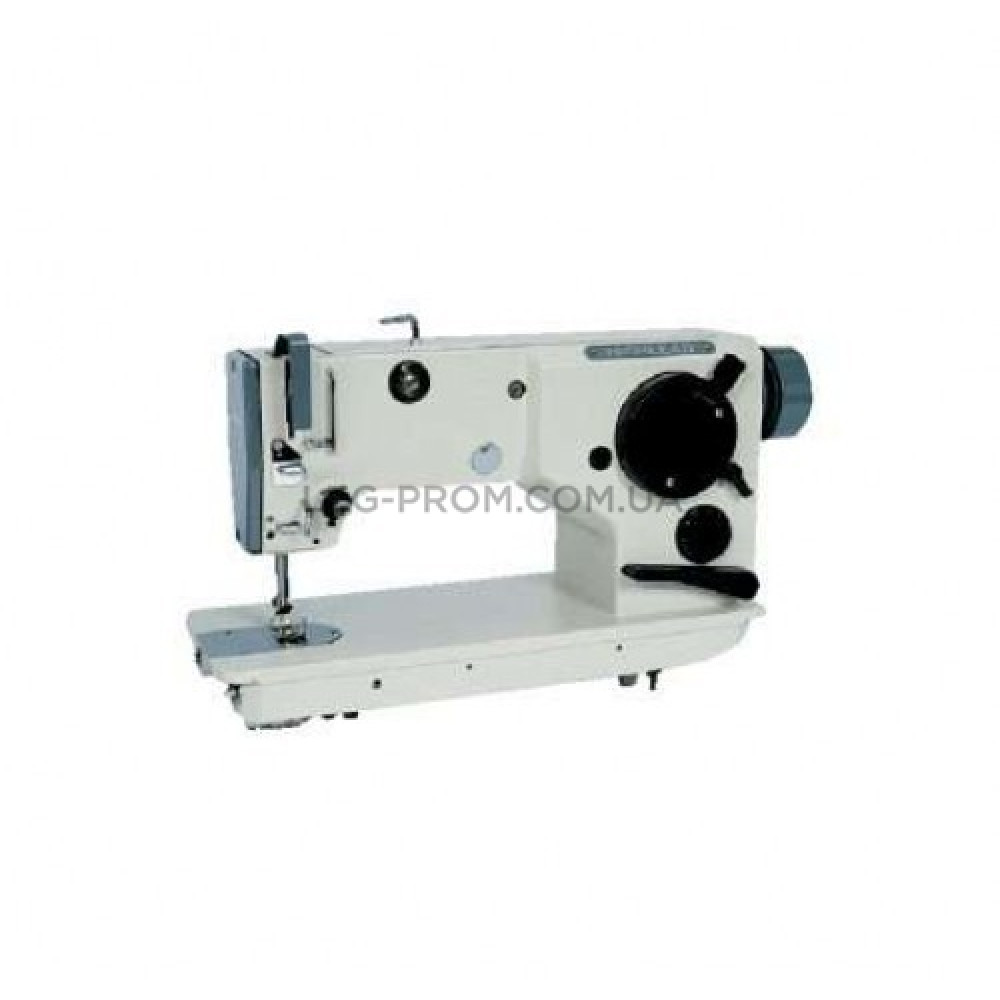

Ankai AK-82801-1 - it is a single-needle sewing machine with the Shuttle running, designed mainly for heavy and coarse materials.
Ankai AK-82801-1 copes with leather and other leather products.
Designed for grinding hard materials of different zigzag lines. Form lines can be modified by using opernogo drive.
Parallel and vertical needle bar movements produce in the course of the very accurate and elegant seams due to the enhanced capture of the needle.
Large hook to increase work efficiency. Only this model is able to make 14 different kinds zigzag seam.
It is necessary to take into account private and semi-automatic lubricating system through which lubricant is constant and the necessary sealing bearings that will certainly increase the durability of the most critical parts of the machine.
Main features:
-
The number of needles – 1 piece;
-
Type of needle – DPх35;
-
The stroke of thread take-up lever - 82 mm;
-
Maximum stitch length – 5 mm;
-
Maximum stitch width - 10 mm;
-
Maximum stitch thickness - 7 mm;
-
Lifting height of presser foot:
- hand – 7 mm;
- knee – 12 mm;
-
Needle bar stroke is 36 mm;
-
The maximum speed of the sewing process – 2000 rpm;
-
Lubrication of rubbing parts made in semi-automatic mode.
-
Similar specification models K-82801-1/AK-82801-2
-
Pruning is performed by means of the lever.
To buy Ankai AK-82801-1 add product to cart.
